Multiplexing - Power Units

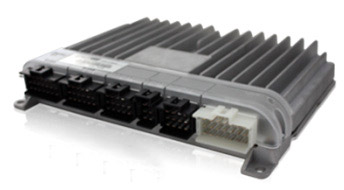

Power66 Unit (P66)

Any P66 unit performs in any location on any Actimux vehicle type. Up to 10 Power units by a single Multic2 Master.

Inputs/Outputs

  • 4 x Dedicated Analogue Inputs
  • 2 x Frequency or Logical Inputs(LS)
  • 11 x Universal Inputs(Logical(HS or LS), Analogue(Voltage
  • or Resistance)
  • 2 x wakeup or Logical(LS) inputs
  • 1 x wakeup or Logical(HS) inputs
  • 12 x 2 Amp(HS) Outputs
  • 8 x 2 Amp(HS) Outputs or Logical(LS) inputs
  • 8 x 9 Amp(HS) Outputs(PWM)
  • 4 x 12A(HS) Outputs(PWM)
  • 8 x 12A/9A (HS or LS)Outputs (PWM), (Bridge)
  • 4 x Sensor Supply(variable Voltage)

3 Different Power Rails for Outputs Vbat / V1 / Vams

If communication is lost, the unit will operate standalone for “limp home”

Continuous monitoring of its inputs and outputs for fault detection & diagnostics

All outputs protected against short circuit by use of Smartmos devices (fuses only required for P33 power supply)



Power33 Unit (P33)

Any P33 performs in any location on any Actimux vehicle type. Up to 10 Power units by a single Multic2 Master

Inputs/Outputs

  • 2 x Dedicated Analogue Inputs
  • 2 x Frequency or Logical Inputs(LS)
  • 7 x Universal Inputs(Logical(HS or LS), Analogue(Voltage
  • or Resistance)
  • 2 x wakeup or Logical(LS) inputs
  • 10 x 2 Amp(HS) Outputs or Logical(LS) inputs
  • 4 x 9 Amp(HS) Outputs(PWM)
  • 2 x 12A(HS) Outputs(PWM)
  • 4 x 9A (HS or LS)Outputs (PWM), (Bridge)
  • 2 x Sensor Supply(variable Voltage)

3 Different Power Rails for Outputs Vbat / V1 / Vams

If communication is lost, the unit will operate standalone for “limp home”

Continuous monitoring of its inputs and outputs for fault detection & diagnostics

All outputs protected against short circuit by use of Smartmos devices (fuses only required for P33 power supply)
